Apex / W41

Manufactured

Floor Plan

Floor Plan Description

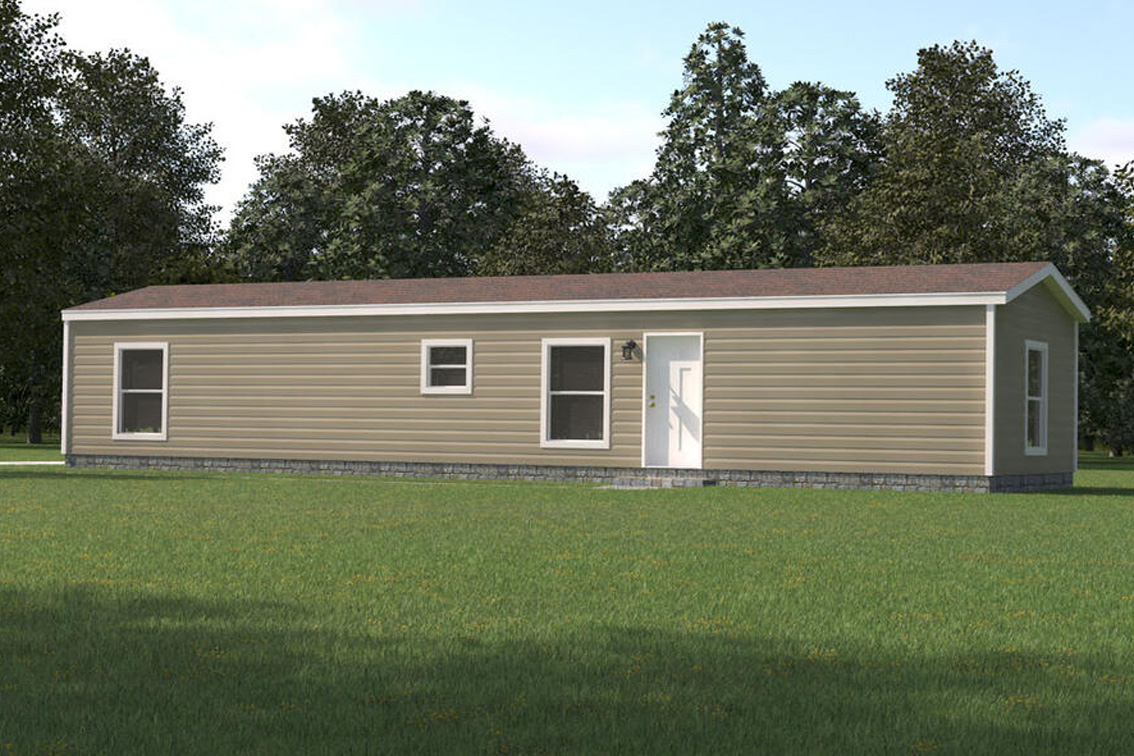

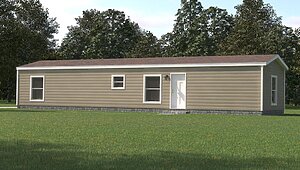

The MODEN W41 is a compact, single‑section ranch spanning 896 sq ft, ideal for efficient living. It offers 2 bedrooms and 2 full baths in a layout designed for comfort and flow. Standard features include LED can‑lighting throughout, six‑panel interior doors, and insulated R‑21 walls and ceilings. Built by MODEN, this is the Apex W41.
Share This Home
Bedrooms 2
Bathrooms 2
Square Feet 896
Width 16' 0"
Length 56' 0"
Sections 1
Stories 1
Style Ranch

3D Tour

No 3d Tour Available

Floor Plan Specifications

Bathroom Bathtubs: Glamour Bath in Master Bath w/Fiberglass Deck Tub & Shower
Bathroom Fans: Powerful Exhaust Fans in All Baths
Bathroom Flooring: Bath Friendly Vinyl Flooring
Bathroom Shower: 54" Fiberglass Tub/Shower in Guest Bathroom
Bathroom Sink: China Sinks Both Baths (Dual Sinks Master Bath)
Bathroom Toilet Type: Water Saving Commodes
Bathroom Mirror: Wood Trim Mirrors
Additional Specs: Heat-Reducing Vented Roof Cavity
Exterior Wall Studs: 2 x 4
Floor Decking: Triple-Fastened O.S.B. Floor Decking
Insulation (Floors): R-11
Floor Joists: 2 x 8 Floor Joists
Other: Camber and Reverse-Cambered Engineering
Roof Load: 20lb Roof Load
Side Wall Height: 8' Flat Ceiling Design
Insulation (Walls): R-11
Insulation Zone: Thermal Zone 2
Insulation (Roof): R-26
Frame: I-Beam w/Sturdy "C" Channel Cross Members
Water Lines: SuperPex Water Supply System
Endwall Eaves: 12" Endwall Eaves
Front Rear Eaves: 6" Eaves
Door Locks: Dead bolts with Cut Resistant Cylinders. Keyed-alike Doors (Except Patio Doors)
Front Door: House Type Front Door w/storm
Rear Door: Cottage Rear Door
Roof Pitch: 3 / 12 Roof pitch
Shingles: 25 Year Asphalt Shingles
Siding: Low-Maintenance Premium Vinyl Siding
Window Type: Vinyl Thermal Pane Windows w/Shutters
Exterior Outlets: Standard GFCI Recept
Ceiling Texture: Flat Ceiling Design T/O
Interior Doors: 6-Panel Interior Doors w/ Heavy Hinges
Interior Lighting: LED Can Lights Through out
Wall Finish: Decorative Wall Panels
Interior Walls: Damp-Resistant Vinyl-Covered Sheetrock Walls
Window Treatment: 2" Cordless Blinds Through Out
Interior Flooring: Beauflor Vinyl Flooring Through Out
Kitchen Additional Specs: Plumbed for Icemaker
Kitchen Cabinetry: Shaker Style Cabinet Doors
Kitchen Countertops: Wilsonart Brand Laminate Countertops
Kitchen Dishwasher: Per Model
Kitchen Drawer Type: Space Saving Drawer Bank
Kitchen Other: 12" Deep Upper Cabinets. Base Cabinet Center Shelves
Kitchen Range Type: Whirlpool Stainless Electric Range
Kitchen Refrigerator: Whirlpool Stainless 18 CF Refrigerator
Kitchen Sink: Double Bowl Stainless Steel Sink
Electrical Service: 200 Amp Interior Panel Box
Shut Off Valves Throughout: Shut-Off Valves at Sinks and Commodes
Thermostat: Programmable Thermostat
Washer Dryer Hook Up: Plumb, Wire and Vent for Washer/Dryer
Water Heater: 50 Gallon Dual Element Water Heater
Water Shut Off Valves: Whole House Water Shut Off Valve
Proudly Built By
Moden
6991 Bowman Roberts Rd
Fort Worth, TX 76179
Please note:

All sizes and dimensions are nominal or based on approximate builder measurements. The builder reserves the right to make changes due to any changes in material, color, specifications, and features anytime without notice or obligation.
