Disciple Series / The Andrew

Manufactured

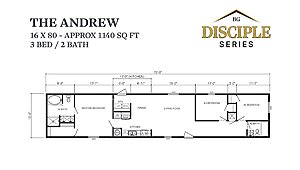

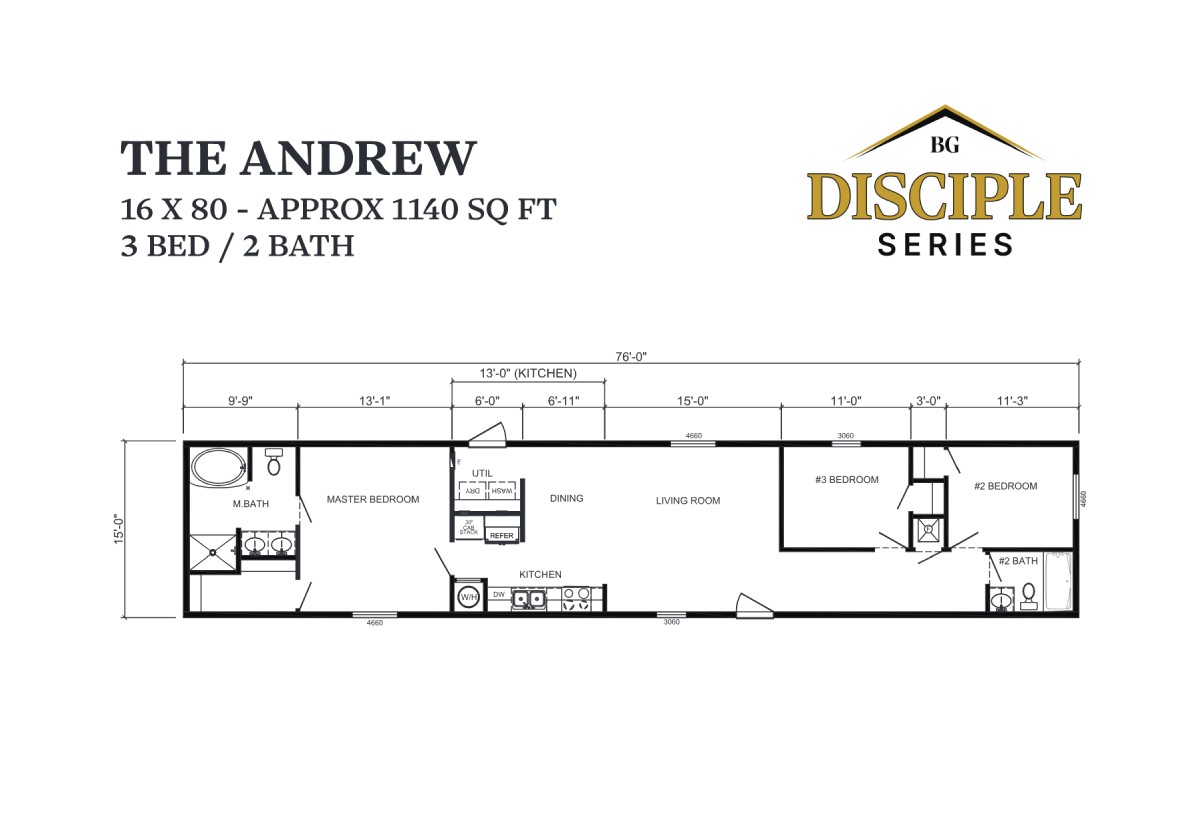

Floor Plan

Floor Plan Description

The Andrew
Share This Home
Bedrooms 3
Bathrooms 2
Square Feet 1140
Width 16' 0"
Length 80' 0"
Sections 2
Stories 1
Style Ranch

3D Tour

No 3d Tour Available

Floor Plan Specifications

Bathroom Shower: 60" Walk-in Shower and Pedestal Tub in Master Bath / Drop-in and Pedestal Tub Option / 54" Tub/Shower Combo in 2nd Bath
Bathroom Toilet Type: Handicap Toilet (Standard)
Additional Specs: House Wrap Siding Underlayment
Exterior Wall On Center: 16" OC
Exterior Wall Studs: 2x4 (2x6 Upgrade)
Floor Decking: 23/32" T&G OSB Floor Decking (Plywood Upgrade)
Insulation (Floors): R11 (R19 and R22 Upgrade)
Floor Joists: 2x8 16" OC
Interior Wall On Center: 16" OC
Interior Wall Studs: 2x4
Side Wall Height: 8' Sidewall Standard
Insulation (Walls): R11 on Single and R22 on Double
Insulation (Roof): R30 (R38 and R40 Upgrade)
Additional Specs: Exterior Faucets on Front and Back
Front Door: 36x80 6-Panel Exterior Front Door (Upgrade Optional)
Rear Door: 36x80 6-Panel Exterior Rear Door (Upgrade Optional)
Shingles: Metal Roof (Shingles Optional)
Siding: Vinyl Siding
Window Type: While Gridless Low-E Windows / 2" Window Blinds Throughout
Exterior Outlets: Electrical GFI Outlets on Front and Back of Home
Ceiling Texture: Full Knockdown Ceiling (Knockdown Finish)
Interior Doors: 5 Panel Interior Door
Molding: 2" Batten Crown and Base Molding
Safety Alarms: Smoke Alarms / CO2 Detection
Wall Finish: Wall Board VOG Walls
Interior Flooring: Lino Flooring Throughout
Cabinetry & Counters: Full Plywood Cabinets (Poplar and Oak) / Soft Close Doors and Drawers Throughout / 42" Overhead Cabinets / Nickel, Black, and Gold Cabinet Pulls and Knob Option
Kitchen Backsplash: Ceramic Tile behind Range
Kitchen Countertops: Formica
Kitchen Dishwasher: Frigidaire Stainless Steel
Kitchen Lighting: Can Lights Throughout Kitchen
Kitchen Range Hood: 30" Stainless Steel Range Hood
Kitchen Range Type: Frigidaire Stainless Steel
Kitchen Refrigerator: Frigidaire SxS Stainless Steel Refrigerator
Kitchen Sink: Stainless Steel Double Bowl 60/40 Farm Sink
Additional Specs: Indirect Return Air
Electrical Service: 200 Amp Electric Service
Heat Duct Registers: Highly Efficient Electric Furnace with Overheat Ducts
Shut Off Valves Throughout: Whole House Water Shut-off Valve
Thermostat: Programmable Digital Thermostat
Water Heater: 50 Gallon Electric Water Heater (Upgrades Optional)
Door Hardware: Nickel Interior Door Knobs
Offered By
Integrity Homes
240 Goodwill Road
Minden, LA 71055
BG Manufacturing - Brilliant, AL
Proudly Built By
Please note:

All sizes and dimensions are nominal or based on approximate builder measurements. The builder reserves the right to make changes due to any changes in material, color, specifications, and features anytime without notice or obligation.
