Chalet / Clearwater 3CH2840

Modular

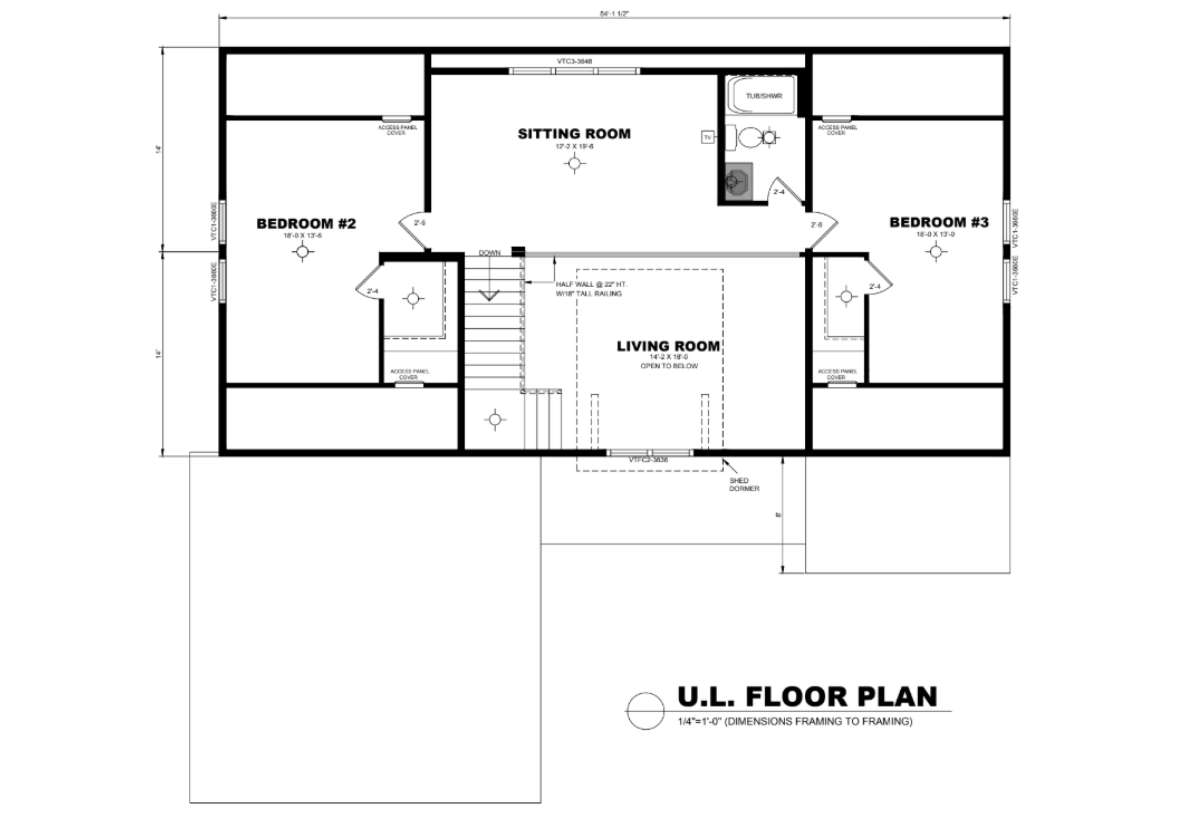

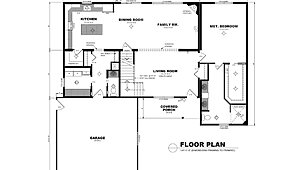

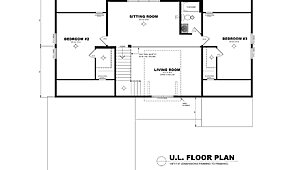

Floor Plan

Floor Plan Description

The Chalet / Clearwater 3CH2840 built by Dynamic Homes is a beautifully designed home that embraces open-concept living. The floor plan includes 3 bedrooms, 2.5 bathrooms, and 2,508 square feet of living space. Featuring a spacious kitchen, a cozy living area, and a tranquil master suite, this home is perfect for those who love chalet-style living. The Clearwater 3CH2854 is designed for comfort and style.
Share This Home
Bedrooms 3
Bathrooms 2.5
Square Feet 2508
Width 28' 0"
Length 54' 0"
Sections 2
Stories 2
Style Chalet

3D Tour

No 3d Tour Available

Floor Plan Specifications

Bathroom Additional Specs: Chrome paper holders and towel bars in baths (Kohler)
Bathroom Cabinets: Ventilated closet shelving
Bathroom Shower: White fiberglass bath and shower bay
Bathroom Sink: Corian vanity top w/ eased edge in 4 colors w/ integrated glacier white bowl in Bathrooms / Plate glass vanity mirrors
Bathroom Toilet Type: White stools with seat
Additional Specs: 1 x 3 Pine cross bridging / 1/2" Plywood underlayment (glued & stapled) / Steel jack posts where specified / 4 Mil poly vapor barrier caulked and sealed / Block-It house wrap / Engineered 2 x 6 studs at all cabinet/countertop locations
Exterior Wall Studs: 2 x 6 Exterior wall studs / 2 x 6 Double top plate
Floor Decking: 7/16" OSB sub floor (glued & stapled)
Floor Joists: 2 x 10 Floor joists #2 or better @ 16" OC
Interior Wall On Center: 16" OC
Interior Wall Studs: 16" OC
Other: Ice and water shield per code / Synthetic roofing underlayment / Ridge vent with ridge tabs
Roof Truss: 6/12 2 x 4 engineered truss rafters @ 24" OC / 14" Roof overhang
Side Wall Height: 8' Ceiling height
Insulation (Walls): 6" R-21 Fiberglass insulation
Roof Decking: 7/16" OSB roof sheathing w/ H-Clips
Insulation (Roof): R-55 Blown cellulose ceiling insulation
Additional Specs: Rollex aluminum soffit and fascia (8" wood grain fascia) / Clad exterior frames and adjustable thresholds (Bayer Built)
Front Door: 3 - panel insulated metal exterior doors with extruded aluminum / Plymouth exterior locksets with deadbolts in choice of color (Schlage)
Shingles: Architectural shingles
Window Type: Vinyl casement windows with Low-E glass (Thermo-Tech)
Interior Doors: Three hinges on interior doors in choice of color / Plymouth interior locksets in choice of color (Schlage)
Safety Alarms: Smoke detectors & carbon monoxide detector with battery backup
Wall Finish: 1/2" Drywall
Interior Paint: Sherwin Williams Moisture Vapor Barrier Sealer/Primer - splatter wall finish / Sherwin Williams Moisture Vapor Barrier Sealer/Primer - splatter ceiling finish
Cabinetry & Counters: Prefinished flush hollow core oak doors / Prefinished 3-1/4" oak baseboard (Colonial) / Prefinished 2-1/4" oak door casing (Colonial)
Kitchen Cabinetry: Craftsman oak cabinets (SWI)
Kitchen Countertops: Laminate kitchen countertop with marbella edge
Kitchen Faucets: Chrome single-lever kitchen and bathroom faucets (Kohler)
Kitchen Lighting: LED Disk light above kitchen sink
Kitchen Other: PVC vent and waste pipes / USB outlet in center island
Kitchen Range Hood: Ducted range hood
Kitchen Sink: 8" Deep Stainless steel kitchen sink
Home Entertainment: TV (RG6 Cable) and phone jacks w/Cat 6 wire
Additional Specs: Copper water lines with shutoff valves at each fixture / GFI receptacles (where required)
Electrical Service: 200 amp panel box with breakers shipped loose and installed onsite
Other: Dryer vents stubbed into floor joists / 3" PVC passive radon vent / Heat Registers / Wire only for thermostat / Wire only for air exchanger controller
Doorbell: Door chime and push button doorbell
Offered By
Anderson Homes, Inc.
US Highway 71
Sebeka, MN 56477
Dynamic Homes - Detroit Lakes, MN
Proudly Built By
Please note:

All sizes and dimensions are nominal or based on approximate builder measurements. The builder reserves the right to make changes due to any changes in material, color, specifications, and features anytime without notice or obligation.
